Pinch Valves

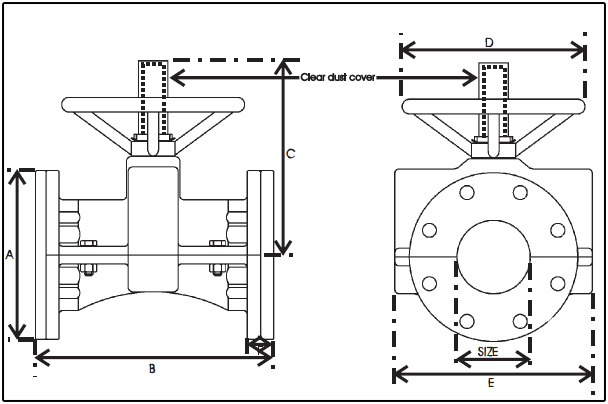

Manual Operated Valves

Size mm A B C D E F Mass Kg
25 115 135 58 86 88 17 8
50 165 198 122 175 165 26 11
80 200 258 154 200 235 29 22
100 230 313 174 250 270 28 37
125 255 364 187 400 270 32 45
150 285 413 213 400 350 38 71
200 345 528 253 600 425 40 120
250 406 643 490 700 519 43 200
click to enlarge

Notes to dimensions

  1. Flange drilling to customer's specification.
  2. Sleeve design temperature: 80 degC or 120 degC.
  3. Sleeve deisgn pressure: Maximum 10 bar / 145 PSI.
  4. Sleeve safety factor: 3:1.
  5. Enclosed valve body.
  6. Valve fitted with clear dust cover over rising spindle.
  7. visible rising spindle used for valve position indicator.

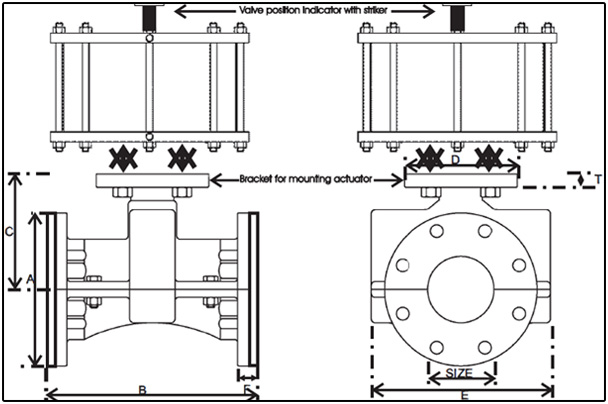

Pneumatically Operated Valves

Size mm A B C D E F T Stroke Mass Kg
25 115 135 58 86 88 17 15 28 8
50 165 198 122 130 165 26 15 45 11
80 200 258 154 170 235 29 20 66 22
100 230 313 174 170 270 28 20 80 37
125 255 364 187 170 270 32 20 98 45
150 285 413 213 200 350 38 20 115 71
200 345 528 253 200 425 40 22 150 120
250 406 643 490 7000 519 43 22 185 200
click to enlarge

Notes to dimensions

  1. Flange drilling to customer's specification.
  2. Sleeve design temperature: 80 degC or 120 degC.
  3. Sleeve deisgn pressure: Maximum 10 bar / 145 PSI.
  4. Sleeve safety factor: 3:1.
  5. Enclosed valve body.

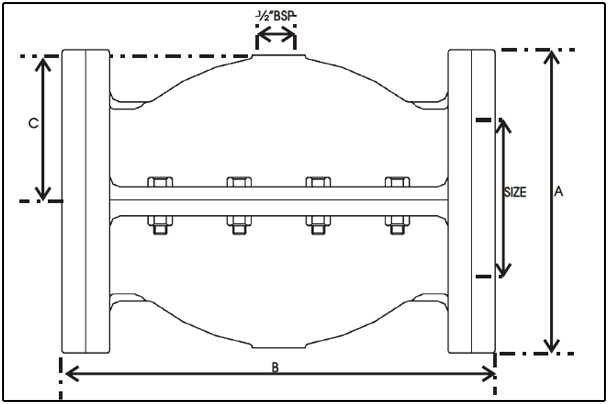

Air Operated Valves

Size (mm) A B C Mass Kg
25 115 135 58 8
50 165 198 83 11
80 200 258 100 22
100 230 313 115 37
125 255 364 128 71
150 285 413 143 71
200 345 528 172 120
250 406 643 203 200
click to enlarge

Notes to dimensions

  1. Flange drilling to customer's specification.
  2. Sleeve design temperature: 80 degC or 120 degC.
  3. Totally enclosed valve body.
  4. Valve body available in aluminum or Ductile (SG) Iron.
  5. Valve weights based on Ductile Iron body.
  6. This valve is ideal for low pressure slurry applications or pneumatic conveying.
  7. The valve is closed by putting air pressure on the sleeve. The air pressure required is 2 Bar (20kPa) (29.5 PSI) above the pipeline pressure to seal.
  8. The valves give 100% isolation. All valves are pressure tested to ensure they seal before supply.
